UTM 2020 New Machine Tensile Testing Machine Peeling Force Testing Machine
KJ-1065A Series high precision peel release stre...
Uses:
This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Design standard:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Character:
1 That Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2 Have steady performace, high accuracy, powerful software function and easy operation.
3 Use the USA high-precision load cell.
Specifications:
| Capacity choice | 1 , 2 , 5 , 10 Kg |
| Stroke | 650mm(excluding clamp) |
| Range of speed | 0.01~500mm/min |
| Effective testing space | 1200mmMAX |
| Accuracy | ±0.5% |
| Operation method | Windows operation |
| Motor | AC motor |
| Accessories | printer, system operation manual,pair of clamp |
| Optional accessories | stretcher, clamp |
| Resolution | 1/150,000 |
| Weight | 70kg |
| Dimention | (W×D×H)58×58×125cm |
| Power | AC220V, 50/60Hz |
Safety Device:
Stroke protection:Upper and lower protection, prevent over preset
Force protection:system setting
Emergency stop device:Handling emergencies.

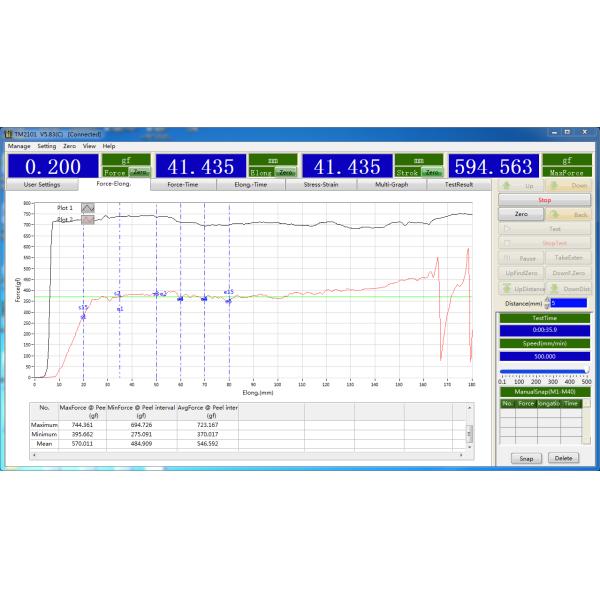

Software functions:
- Use windows working platform, set all parameter with dialog forms and operate easy;
- Using a single screen operation, do not need to change the screen;
- Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
- Plan test sheet mode freely;
- Test data can be directly appeared in the screen;
- Compare multiple curve data through translation or contrast ways;
- With many units of measurement, the metric system and british system can switch;
- Have automatic calibration function;
- Have user-defined test method function
- Have test data arithmetic analysis function
- Have the function of automatic magnification, to achieve the most appropriate size of graphics;
